Modal camara SWIR lìonra 1280x1024/640x512
Sònrachadh
Modail | SG-SWZ12ND2-17510 | SG-SWZ06ND2-17510 | |
Brathadair | Sensor ìomhaigh | 1/2 ″ SONY InGaAs Global Shutter SWIR Sensor IMX990 | 1/4 ″ SONY InGaAs Global Shutter SWIR Sensor IMX991 |
| Pixels èifeachdach | Mu thuairmeas. 1.34MP | Mu thuairmeas. 0.34MP | |
| Meud Pixel | 5 m | ||
Lionsa | Tonn freagairt | 1000 ~ 1700nm | |
| ICR | Taic 2 mhodh: Còmhlan farsaing: 1000 ~ 1700nm Còmhlan caol: 1450 ~ 1700nm | ||
| Faid Fòcais | 17mm ~ 510mm, 30x Optical Zoom | ||
| Fosgladh | F2.8~F5.5 | ||
| Raon Seallaidh | H: 21.3 ° ~ 0.71 °, V: 17.1 ° ~ 0.57 °, D: 27.1 ° ~ 0.92 ° | H: 11.6 ° ~ 0.37 °, V: 9.3 ° ~ 0.3 °, D: 14.8 ° ~ 0.47 ° | |
| Dùin astar fòcas | 1m~10m (Leud~Tele) | ||
| Luas Sùm | Mu thuairmeas. 7s (Optical Wide~Tele) | ||
Bhideo | Dlùthadh | H.265/H.264/H.264H/MJPEG | |
| Fuasgladh | 25/30/50/60fps@1280×1024 | 25/30/50/60fps@640×512 | |
| Ìre Bits Video | 32kbps ~ 16 Mbps | ||
| Fuaim | AAC / MP2L2 | ||
| LVDS bhidio a | 25/30/50/60fps@2MP (1920×1080) | ||
Lìonra | Stòradh | Cairt TF (256 GB), FTP, NAS | |
| Pròtacal lìonra | Onvif, HTTP, HTTPS, IPv4, IPv6, RTSP, DDNS, RTP, TCP, UDP | ||
| Ioma-chraoladh | Taic | ||
| Ùrachadh Firmware (LVDS) | Chan urrainn ach am firmware ùrachadh tro phort Lìonra | ||
| Tachartasan Coitcheann | Gluasad, tamper, cairt SD, lìonra | ||
| IVS | Tripwire, lorg crois-fheansa, sàrachadh, rud air a thrèigsinn, luath - Gluasad, lorg pàirceadh, tuairmse cruinneachadh sluagh, rud a tha a dhìth, lorg loitering. | ||
| Lùghdachadh Fuaim | 2D/3D | ||
| Modh nochdaidh | Leabhar-làimhe, Auto, Prìomhachas Fosglaidh, Prìomhachas Shutter | ||
| Dìoladh Dìoladh | Taic | ||
| Luas Shutter | 1/1~1/30000an | ||
| Modh Fòcas | Càr / Leabhar-làimhe / Semi Auto | ||
| Defog dealanach | Taic | ||
| Lùghdachadh Haze Teas | Taic | ||
| Dèan flip | Taic | ||
| EIS | Taic | ||
| Zoom didseatach | 16x | ||
| Smachd taobh a-muigh | TTL | ||
| Eadar-aghaidh | Port Ethernet 4pin, port sreathach & cumhachd 6pin, port claisneachd 5pin.30pin LVDS | ||
| Pròtacal Conaltraidh | SONY VISCA, Pleco D/P | ||
| Cumhachan Obrachaidh | -30~+60°C/20%~80% RH | ||
| Cumhachan stòraidh | -40~+70°C/20%~95% RH | ||
| Solar cumhachd | DC 12V | ||
| Caitheamh cumhachd (TBD) | Avg: 6W; as àirde tron: 11W | ||

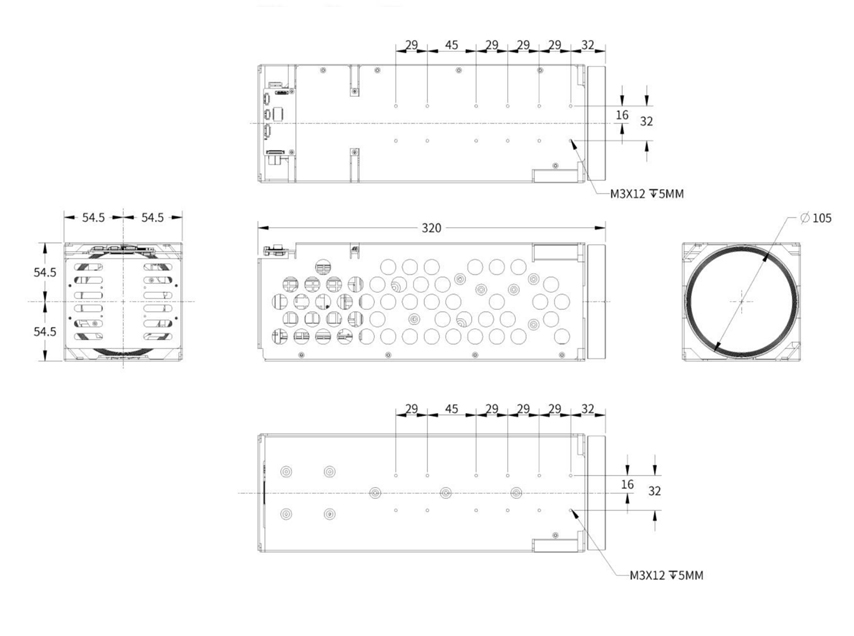

| Meudan (L*W*H) | Mu thuairmeas. 320mm*109mm*109mm | ||
| Cuideam | 3.1kg | ||
Eadar-aghaidh lìonraidh
| Seòrsa | Àireamh PIN | Ainm PIN | Tuairisgeul |
| Eadar-aghaidh Ethernet J2_4pin | 1 | ETHRX- | Port Ethernet freagarrach, eadar-lìn RX - |
| 2 | ETHRX+ | Port Ethernet atharrachail, eadar-lìn RX+ | |
| 3 | ETHTX- | Port Ethernet freagarrach, eadar-lìn TX - | |
| 4 | ETHTX+ | Port Ethernet atharrachail, eadar-lìn TX+ | |
| Eadar-aghaidh cumhachd & UART J3_6pin | 1 | DC_IN | DC12V |
| 2 | GND | GND | |
| 3 | RXD1 | Ìre TTL 3.3V, Pròtacal Pelco | |
| 4 | TXD1 | Ìre TTL 3.3V, Pròtacal Pelco | |
| 5 | RXD0 | Ìre TTL 3.3V, Pròtacal Visca | |
| 6 | TXD0 | Ìre TTL 3.3V, Pròtacal Visca | |
| Eadar-aghaidh claisneachd J1_5pin | 1 | AUDIO_OUT | Fuaim a-mach (Loidhne a-mach) |
| 2 | GND | GND | |
| 3 | AUDIO_IN | Fuaim a-steach (loidhne a-steach) | |
| 4 | GND | GND | |
| 5 | NC | NC |
Eadar-aghaidh LVDS
| Port | Aireamh | Ainm PIN | Tuairisgeul |
| Eadar-aghaidh LVDS J4_30pin (Coltach ri eadar-aghaidh didseatach SONY 30pin) | 1 | NC | NC |
| 2 | NC | ||
| 3 | NC | ||
| 4 | NC | ||
| 5 | NC | ||
| 6 | NC | ||
| 7 | NC | ||
| 8 | NC | ||
| 9 | GND | GND | |
| 10 | GND | ||
| 11 | GND | ||
| 12 | GND | ||
| 13 | DC | Toradh DC (DC + 7V ~ + 12V) | |
| 14 | DC | ||
| 15 | DC | ||
| 16 | DC | ||
| 17 | DC | ||
| 18 | UART1_TX | TTL ìre 3.3V, protocol VISCA, an aon rud ri TXD0 air Port J3_6pin. Ach chan urrainn dha ceangal a dhèanamh aig an aon àm. | |
| 19 | UART1_RX | Ìre TTL 3.3V, protocol VISCA, an aon rud ri RXD0 air Port J3_6pin. Ach chan urrainn dha ceangal a dhèanamh aig an aon àm. | |
| 20 | GND | GND | |
| 21 | TXOUT0- | ||
| 22 | TXOUT0+ | ||
| 23 | TXOUT1- | ||
| 24 | TXOUT1+ | ||
| 25 | TXOUT2- | ||
| 26 | TXOUT2+ | ||
| 27 | TXOUTCLK- | ||
| 28 | TXOUTCLK+ | ||
| 29 | TXOUT3- | ||
| 30 | TXOUT3+ |
