| Modail | SG-ZCM2057ND-O | SG-ZCM2057ND-O2 | |||
| Brathadair | Sensor ìomhaigh | 1 / 1.8 ”Sgan adhartach Sony Starvis CMOS | |||
| Pixels èifeachdach | Mu thuairmeas.4.17 megapixel | ||||
| Lionsa | Faid Fòcais | 15mm ~ 850mm, 57x Optical Zoom | |||
| Fosgladh | F2.8~F6.5 | ||||
| Raon Seallaidh | H: 29.1°~0.5°,V: 16.7°~0.2°,d: 33.2°~0.6° | ||||
| Dùin astar fòcas | 1m~10m (Leud~Tele) | ||||
| Luas Sùm | Mu thuairmeas.8s (Optical Wide~Tele) | ||||
| DORI Distance (Duine) | A bhrath | Thoir an aire | Aithnich | Comharraich | |
| 11,000m | 4,365m | 2,200m | 1,100m | ||
| Bhideo | Dlùthadh | H.265/H.264/H.264H/MJPEG | |||
| Comas Sruthaidh | 3 sruthan | ||||
| Fuasgladh | 50Hz: 25fps@2MP(1920×1080), 25fps@1MP(1280×720)60Hz: 30fps@2MP(1920×1080), 30fps@1MP(1280×720) | ||||
| Ìre Bits Video | 32kbps ~ 16 Mbps | ||||
| Fuaim | AAC / MP2L2 | ||||
| LVDS bhidio a | 50Hz: 25fps@2MP(1920×1080)60Hz: 30fps@2MP(1920×1080) | ||||
| Lìonra | Stòradh | Cairt TF (256 GB), FTP, NAS | |||
| Pròtacal lìonra | Onvif, HTTP, HTTPS, IPv4, IPv6, RTSP, DDNS, RTP, TCP, UDP | ||||
| Ioma-chraoladh | Taic | ||||
| Ùrachadh Firmware (LVDS) | Chan urrainn ach am firmware ùrachadh tro phort Lìonra. | ||||
| Tachartasan Coitcheann | Gluasad, tamper, cairt SD, lìonra | ||||
| IVS | Tripwire, lorg crois-fheansa, sàrachadh, rud air a thrèigsinn, gluasad luath, lorg pàirceadh, tuairmse cruinneachadh sluagh, rud a tha a dhìth, lorg loitering. | ||||
| Co-mheas S/N | ≥55dB (AGC dheth, cuideam AIR) | ||||
| Soillseachadh as ìsle | Dath: 0.005Lux/F2.8;B/W: 0.0005 Lux/F2.8 | ||||
| Lùghdachadh Fuaim | 2D/3D | ||||
| Modh nochdaidh | Auto, Prìomhachas Fosglaidh, Prìomhachas Shutter, Faigh Prìomhachas, Leabhar-làimhe | ||||
| Dìoladh Dìoladh | Taic | ||||
| Luas Shutter | 1/1~1/30000an | ||||
| BLC | Taic | ||||
| HLC | Taic | ||||
| WDR | Taic | ||||
| Cothromachadh Geal | Auto, Leabhar-làimhe, A-staigh, A-muigh, ATW, Sodium lampa, Sràid lampa, Nàdarra, aon phutadh | ||||
| Latha/Oidhche | Dealain, ICR (fèin-ghluasadach / làimhe) | ||||
| Modh Fòcas | Auto, Leabhar-làimhe, Semi Auto, Fast Auto, Fast Semi Auto, One Push AF | ||||
| Defog dealanach | Taic | ||||
| Optical Defog | Taic, tha sianal 750nm ~ 1100nm mar Optical Defog | ||||
| Lùghdachadh Haze Teas | Taic | ||||
| Dèan flip | Taic | ||||
| EIS | Taic | ||||
| OIS (Stàlaich Ìomhaigh Optigeach) | Chan eil | Taic (AIR / OFF) | |||
| Zoom didseatach | 16x | ||||
| Smachd taobh a-muigh | TTL | ||||
| Eadar-aghaidh | Port Ethernet 4pin, port 6pin Power & UART, port claisneachd 5pin.30pin LVDS | ||||
| Pròtacal Conaltraidh | SONY VISCA, Pleco D/P | ||||
| Cumhachan Obrachaidh | (-30 ° C ~ + 60 ° C / 20% gu 80% RH) | ||||
| Cumhachan stòraidh | (-40 ° C ~ + 70 ° C / 20% gu 95% RH） | ||||
| Solar cumhachd | DC 12V | ||||
| Caitheamh cumhachd | Cumhachd statach: 4W, Cumhachd spòrs: 9.5W | ||||

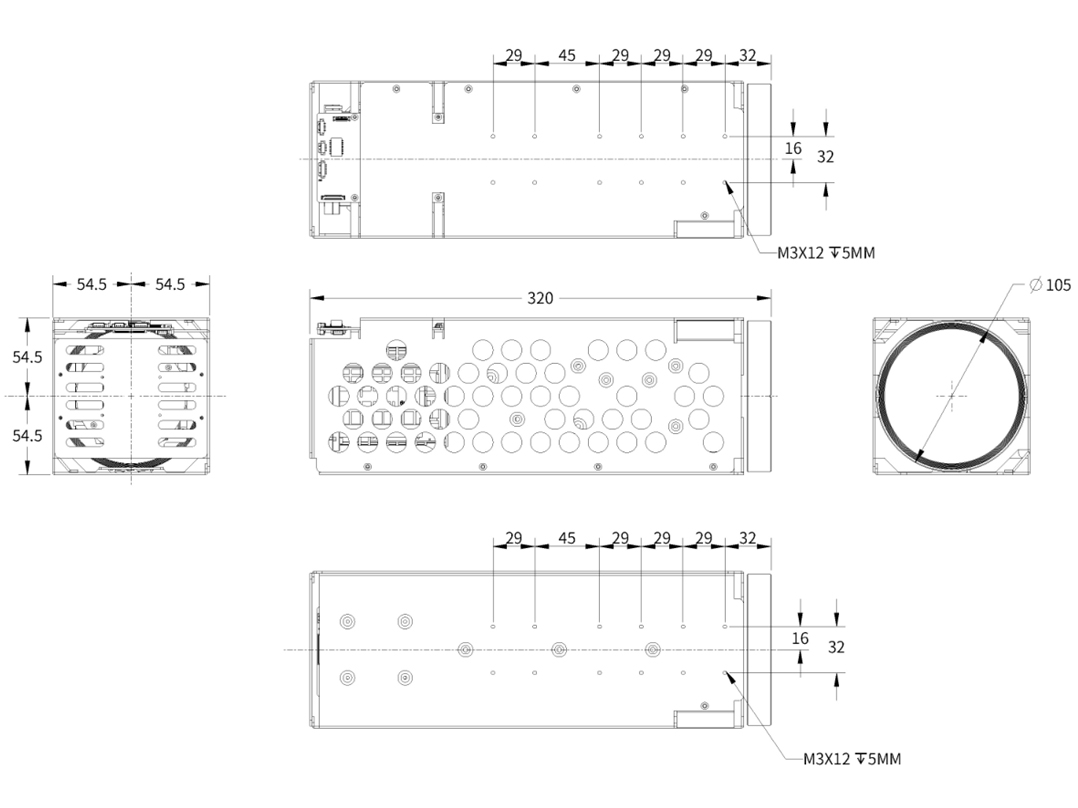

| Meudan (L*W*H) | 320mm*109mm*109mm | ||||
| Cuideam | 3100g | ||||
